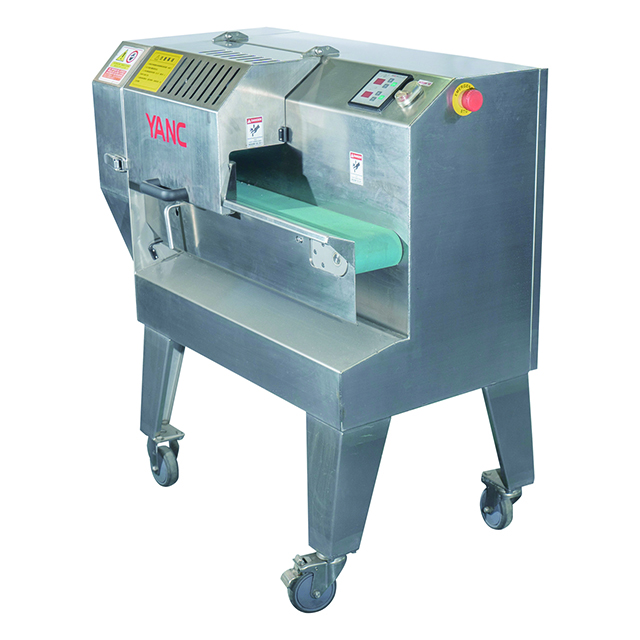

Introduction: YC-700A
This machine is used to cut leafy vegetables, such as celery, cabbage, spinach, leeks, etc. The cut length is adjustable. Suitable for central kitchen operators, canning factories, quick-frozen factories, dry food processing, agricultural product processing, lunch boxes and school restaurant operators.
feature
1. Use visual liquid crystal display operation and PLC control, which is highly intelligent;
2. Enter the length to be cut on the control panel, and the program will automatically optimize the matching tool head and conveyor belt speed;
2. Easy to operate, fast cutting speed, and can achieve the workload of 10 people at the same time;
3. The machine has a length compensation function, which can make up for the errors caused by the characteristics of vegetable varieties when cutting different vegetable varieties, thereby achieving the length required for accurate cutting;
4. The parts are easy to disassemble and can be washed;
5. Stainless steel material, beautiful, hygienic and durable.
Processing raw materials
Celery, garlic shoots, Chinese cabbage, cabbage, spinach, leeks
Product parameters
type | YC-700A |
Dimensions (mm) | 1400X790X1250mm |
Production capacity (kg/hour) | 1000-2000 kg/hour |
Power (kilowatts) | 1.5KW |
Standard voltage (V) | 380V |
Belt width | 170 mm |
Inlet size (mm) | 174X140mm |
Number of knives | Two knives |
Cutting length | 3-50mm (adjustable) |
Options
-We can provide motors that are suitable for your local voltage.
- The number of tools can be selected and replaced.
