Introduction: YC- R&D

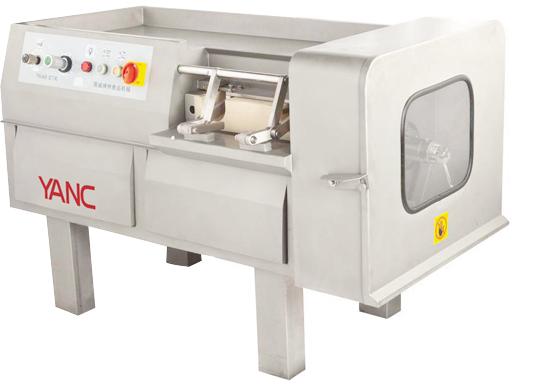

The frozen meat diced machine is designed and manufactured in accordance with international advanced machinery and has a reasonable structure. The frozen meat diced machine can achieve precise diced and has high working efficiency. Dice cutter is an important equipment in the production process of meat products. All kinds of frozen meat, fresh meat, fat and other main raw materials with a central temperature of 0~-5 degrees Celsius can be cut into diced meat needed by users, and the size of the knife grid can be adjusted to cut shreds of meat and slices. The size of the diced meat is determined by the number of blades in the blade grid. The TW-RD400 and TW-RD600 dice cutters produced by our factory are suitable for large, medium and small meat processing plants, and can also produce products with special process requirements according to users' requirements.
feature
1. Good safety protection performance, the rotating tool stops immediately after the front door is opened;
2. The knife frame and large knife are easy to disassemble and assemble, and can be completely disassembled without tools, making it easy to clean and replace the knife frame;
3. The side pressure mechanism can increase the amount of meat cut at one time, and help pre-pressure reach the set value faster and improve production efficiency;
4. The design of the fork structure improves the cutting quality of the product, reduces noise, and reduces the mechanical failure rate.
5. Adjust the prepression knob to ensure that the product is consistent during the cutting process;
6. The meat can be fed gradually and evenly, minimizing the squeezing of the product during the cutting process.
7. Change the number of blades in the blade grid and cut diced meat of different sizes, making it easy to combine;
8. Compact structure, safe and practical, convenient maintenance and cleaning, and flexible assembly.
Processing raw materials
All kinds of frozen meat and fresh meat with a central temperature of 0~-5 degrees Celsius.
Product parameters
type | YC- RD400 | YC- RD600 |
Dimensions (mm) | 1430*750*900mm | 1780*940*1030 mm |
Standard voltage (V) | 380V | 380V |
Power (kilowatts) | 3 kW | 3.7 kW |
Production capacity (kg/hour) | 300-500 kg/hour | 800-1000 kg/hour |
Imported height (mm) | 350 mm | 350 mm |
Cutting groove size (mm) | 84*84*350mm | 120*120*550mm |
Strip size (mm) | 5,6,7,8,10,12,16,24,30 Other sizes are available upon request | 5,6,7,8,10,12,16,24,30 Other sizes are available upon request |
Main motor power (KW) | 1.5 kW | 2.2 kW |
Oil pump motor power (KW) | 1.5 kW | 1.5 kW |
Machine weight (kg) | 320 kg | 560 kg |
Options
-We can provide motors that are suitable for your local voltage.
-The blade can be selected and replaced.
